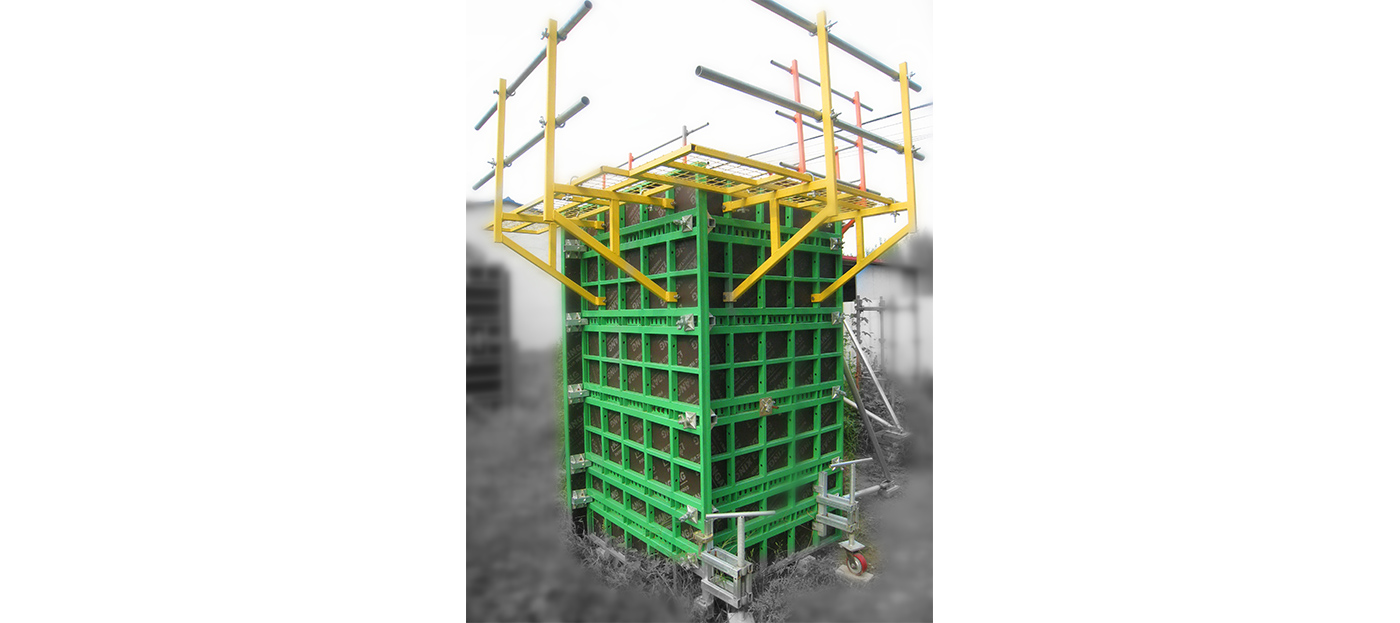

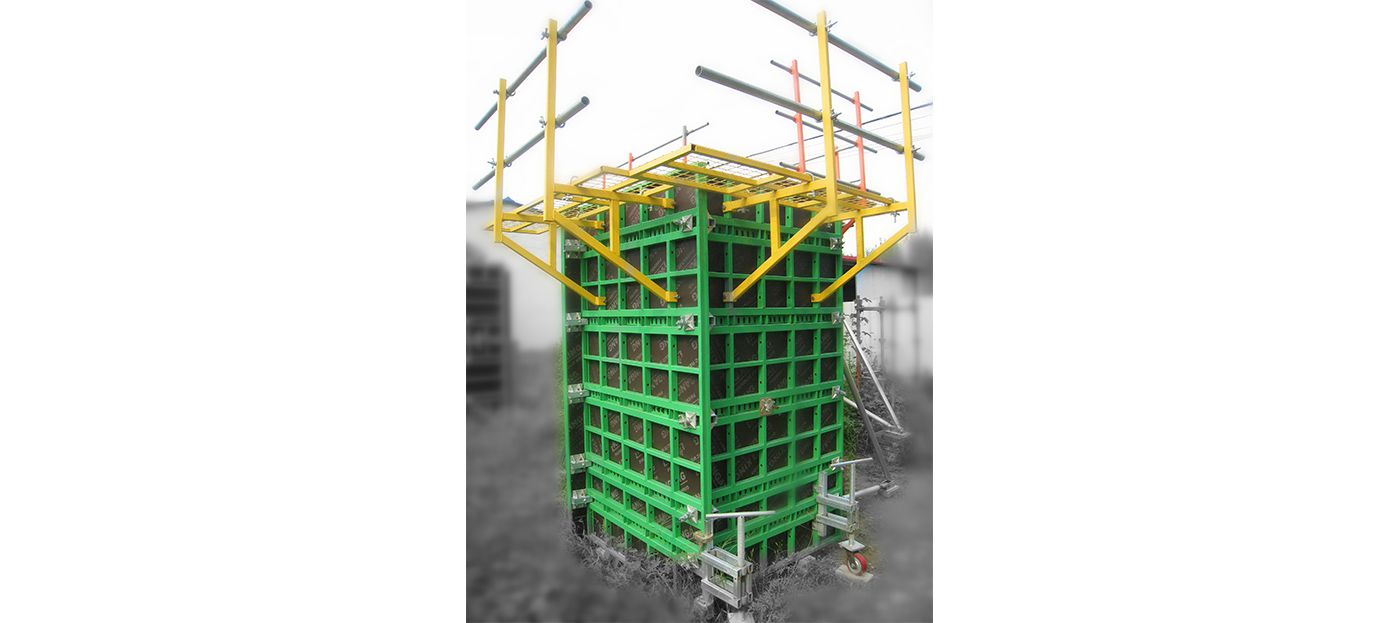

ZOLO Z-FORM™65 adjustable column formwork is light weight and movable by hand using transportation wheels.
ZOLO Z-FORM™65 adjustable column formwork panel is highly versatile with ZOLO Z-FORM™65 wall formwork. We refuse repetitive investment!
ZOLO Z-FORM™65 adjustable column formwork is light weight and movable by hand using transportation wheels.
ZOLO Z-FORM™65 adjustable column formwork panel is highly versatile with ZOLO Z-FORM™65 wall formwork. We refuse repetitive investment!
Z-FORM™65 adjustable column formwork can realize min.200mm to max.900mm width square and rectangular-shaped column and height up to 4.5m with standard design.
1. Light weight and movable by hand using transportation wheels.
2. High number of re-uses through the quality material and dedicated design.
3. Highly efficient with minimum labour costs and erection time.
4. Easy and simple joint by corner clamp.
5. Designed to withstand high concrete pressures up to 60 KN /m2.
6. The plywood is screwed on from the back when connecting frame and plywood, so the surface of the fnished concrete is perfect
7. The formwork series are a complete system with a full set of accessories, and can be set up flexibly according to project demand.
| Material | Q355 High Strengthen Structure Steel+Powder Coatiing or Galvanized |
| Thickness of front panel | 12 mm Z-PLY™ Grade A or Z-PLASTK™ PP Shuttering Board |
| Maximum Lateral Pressure for Column | 60 KN/㎡ |
| Maximum Lateral Pressure for Wall | 50 KN/㎡ |
| Height | 300/600/1200/3000mm |
| Width | 300/600/1000mm |
